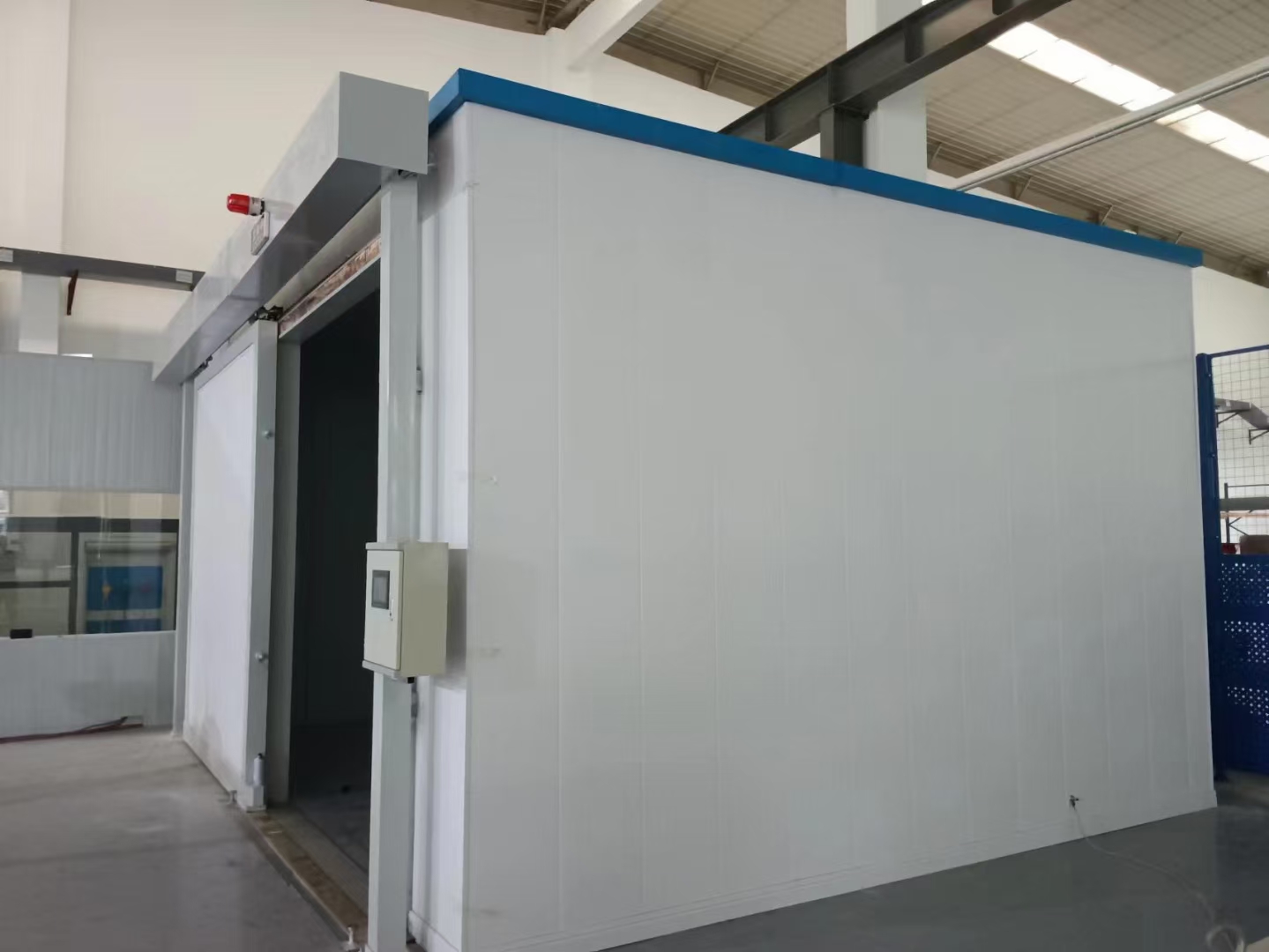

高压局放屏蔽室

适用范围 SCOPE OF APPLICATION

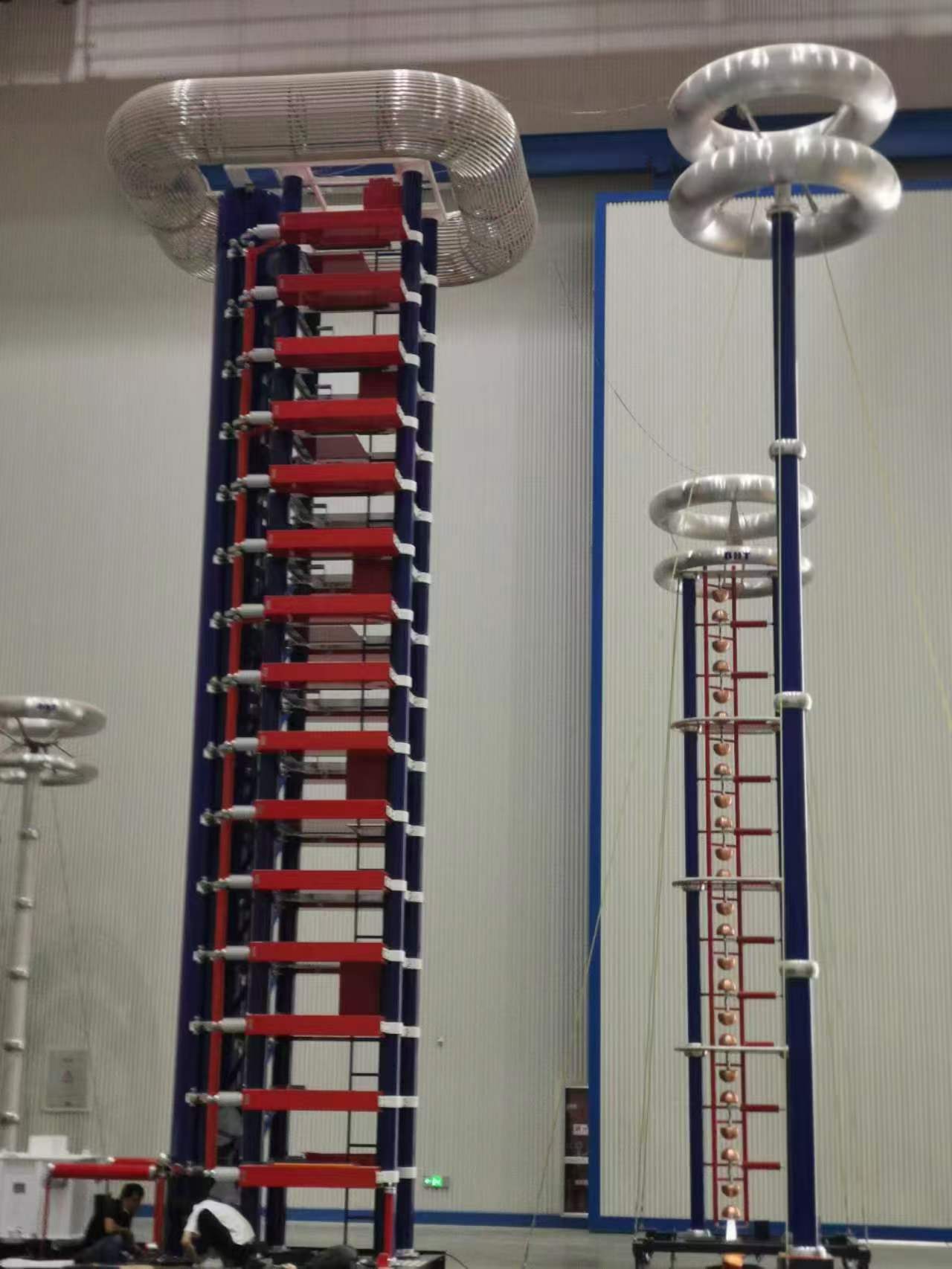

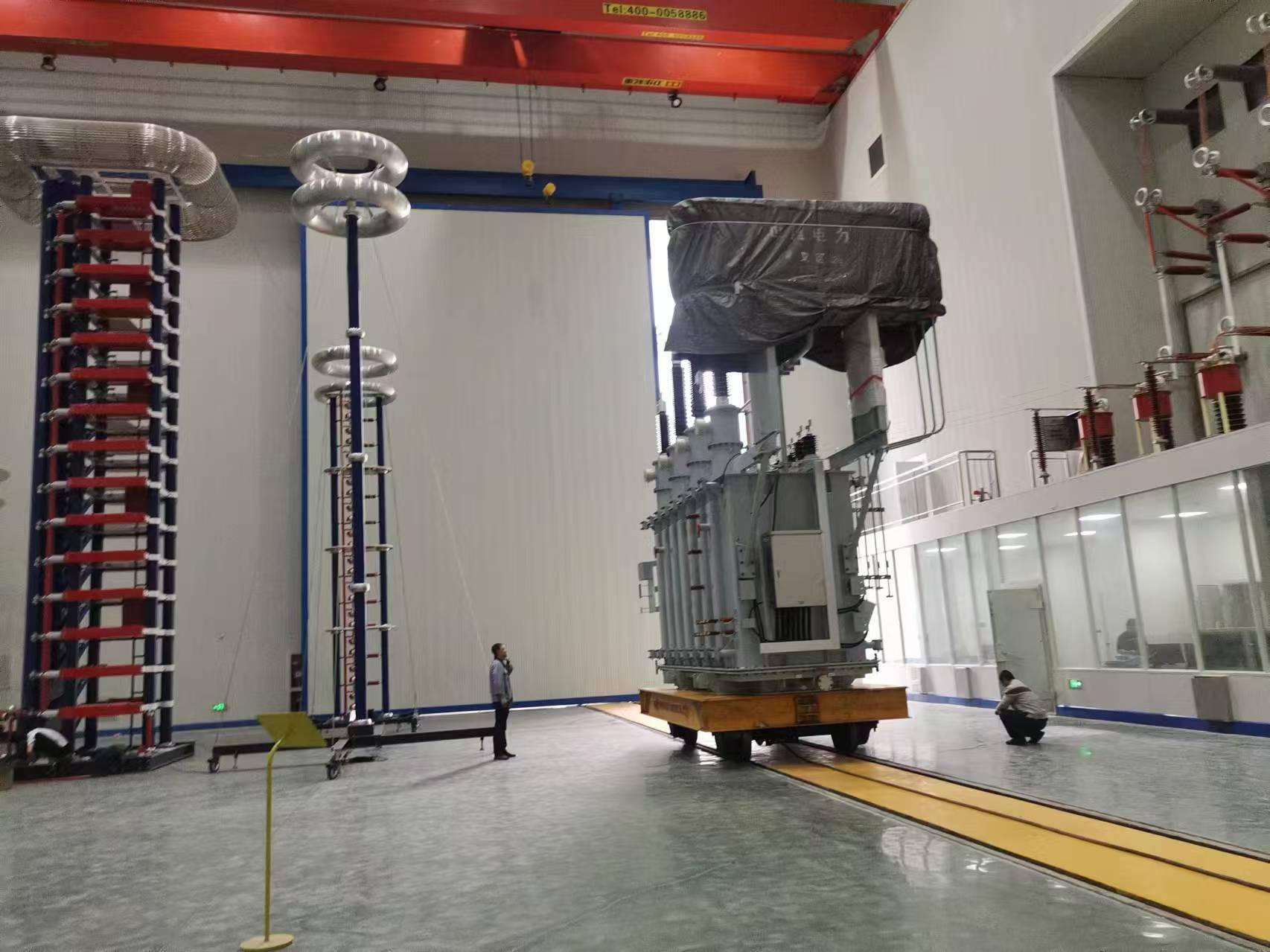

广泛应用于电力电缆、变压器、互感器开关、变电站等各种电压等级的局部放电试验或冲击试验。

It is widely used in partial discharge test or impulse test of power cable,transformer,transformer switch and substation.

分类 CLASSIFICATION

· 拼装式 — — 采用优质镀锌钢板冲微孔加工成模框，中间夹导电衬，用螺栓固定拼接。

· 波浪板 — — 采用镀铝锌板冲孔后压制成波浪板，直接搭接用螺钉固 定在檩条上。

·Assembly type--high quality galvanized steel plate is used to punch micro holes into the mold frame,and the conductive lining is sandwiched in the middle,which is fixed and spliced with bolts.

·Corrugated plate--the corrugated plate is formed by punching and pressing the aluminum zinc plate,which is directly overlapped and fixed on the purling with screws.

性能指标(效能) PERFORMANCE INDEX

· 电磁屏蔽效能：0.5-1.6MHz 范围内≥60dB

· 混响时间：100Hz时<5S

· 绝缘电阻：六面屏蔽体整体绝缘电阻>1MΩ(电压100V)，其中每个屏蔽面的绝缘电阻>100MΩ

· 接地电阻：<0.5Ω

·Electromagnetic shielding effectiveness:≥60dB in the range of 0.5-1.6mhz

·Reverberation time:5S at 100Hz

·Insulation resistance:the overall insulation resistance of the six sided shield is more than 1MΩ(voltage 100V),and the insulation resistance of each shielding surface is more than 100MΩ

·Grounding resistance:<0.5Ω

特点 CHARACTERISTIC

· 施工方便，美观大方，屏蔽性能优越。

· 成型小孔铺以后置吸音棉大大增加吸音效果改善测试环境。

· 成熟的接地技术及地缆沟制作工艺。

· 配置控制室（附高清晰观察窗）。

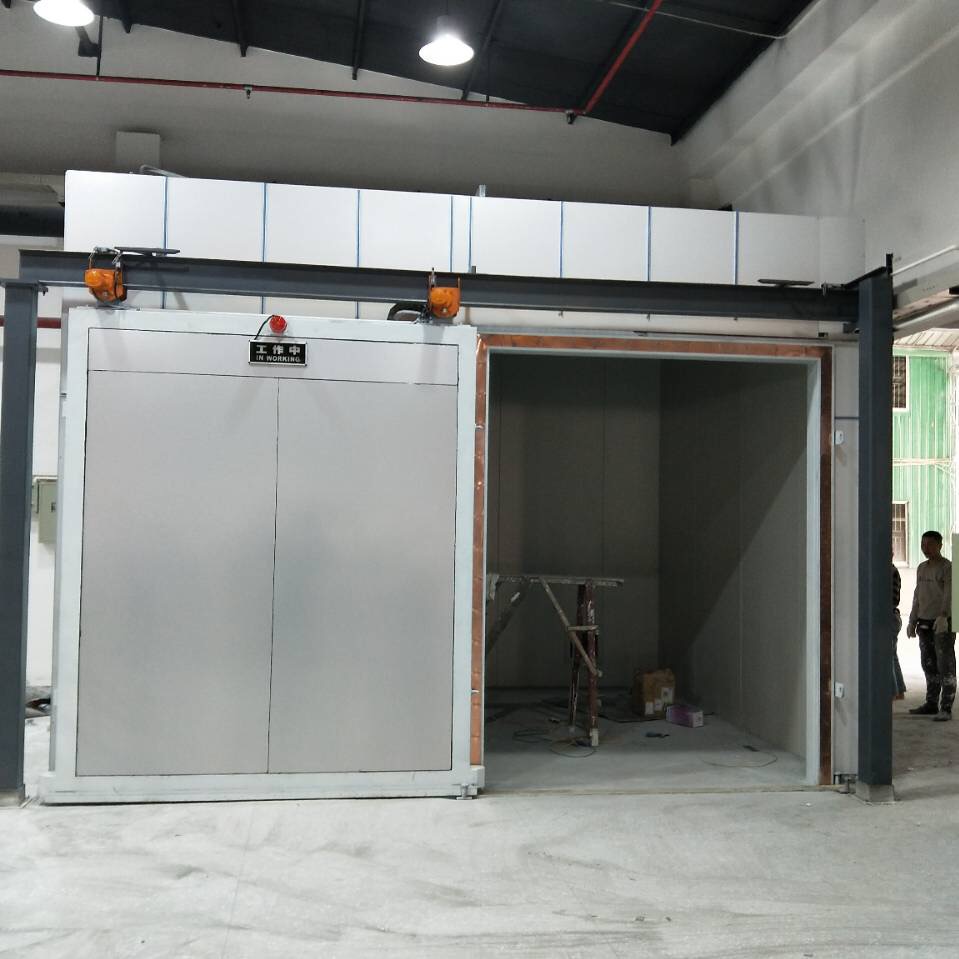

· 可为各种大型实验室量身定做大型平移门或提升门。

·The construction is convenient,beautiful and generous,and the shielding performance is superior.

·After the forming holes are laid,the sound-absorbing cotton is placed to greatly increase the sound absorption effect and improve the test environment.

·Mature grounding technology and cable trench manufacturing technology.

·Equipped with control room(with high-definition observation window).

·Can be customized for a variety of large laboratory large translation door or lift door.
